DE-15MCTB Transformador de corriente
Rating Current：AC 50A
Output：DC 10V
Impendance：DC 500V, over 100MΩ (between aperture and terminals)
Output：DC 10V
Impendance：DC 500V, over 100MΩ (between aperture and terminals)
modelo :
DE-15MCTB
- Rating Current：AC 50A
- Output：DC 10V
- Linearity：As graph above
- Applied Voltage：AC 2000V, 1min (between aperture and terminals)
- Impendance：DC 500V, over 100MΩ (between aperture and terminals)
- Fire Retardant Level：94V0
- Output Terminals：2.54 mm pin
- Anti-vibration：50 Hz 5G

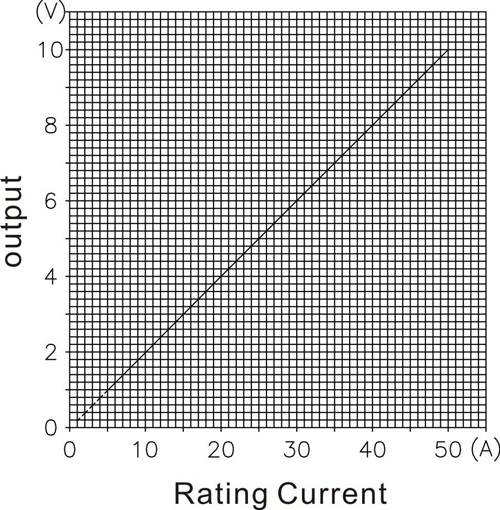

Graph of current and volt:
Temperature：
- Operation Temperature：-10°C~50°C / below 80% R.H. (no condensation)
- Storage Temperature：-20°C~60°C / below 70% R.H. (no condensation)
Material & Weight：
- Material：ABS 765A case with epoxy
- Weight：40 g
