DE-10MCT Transformador de corriente
Rating Current：AC 5A
Output：AC 2mA
Insulation Impedance：DC 500V≧100MΩ
Applied Voltage：AC 2000V 1mA /1 minute
Output：AC 2mA
Insulation Impedance：DC 500V≧100MΩ
Applied Voltage：AC 2000V 1mA /1 minute
modelo :
DE-10MCT
- Rating Current：AC 5A
- Output：AC 2mA
- Insulation Impedance：DC 500V≧100MΩ
- Withstand voltage：AC 2000V 1mA /1 minute
- Operation Environment：-10°C~50°C
- Storage Environment：-20°C~75°C
Measurement Ranges：
|
Model |
Range |
Primary current (ACA) |
Secondary current (ACmA) |
Accuracy |
|

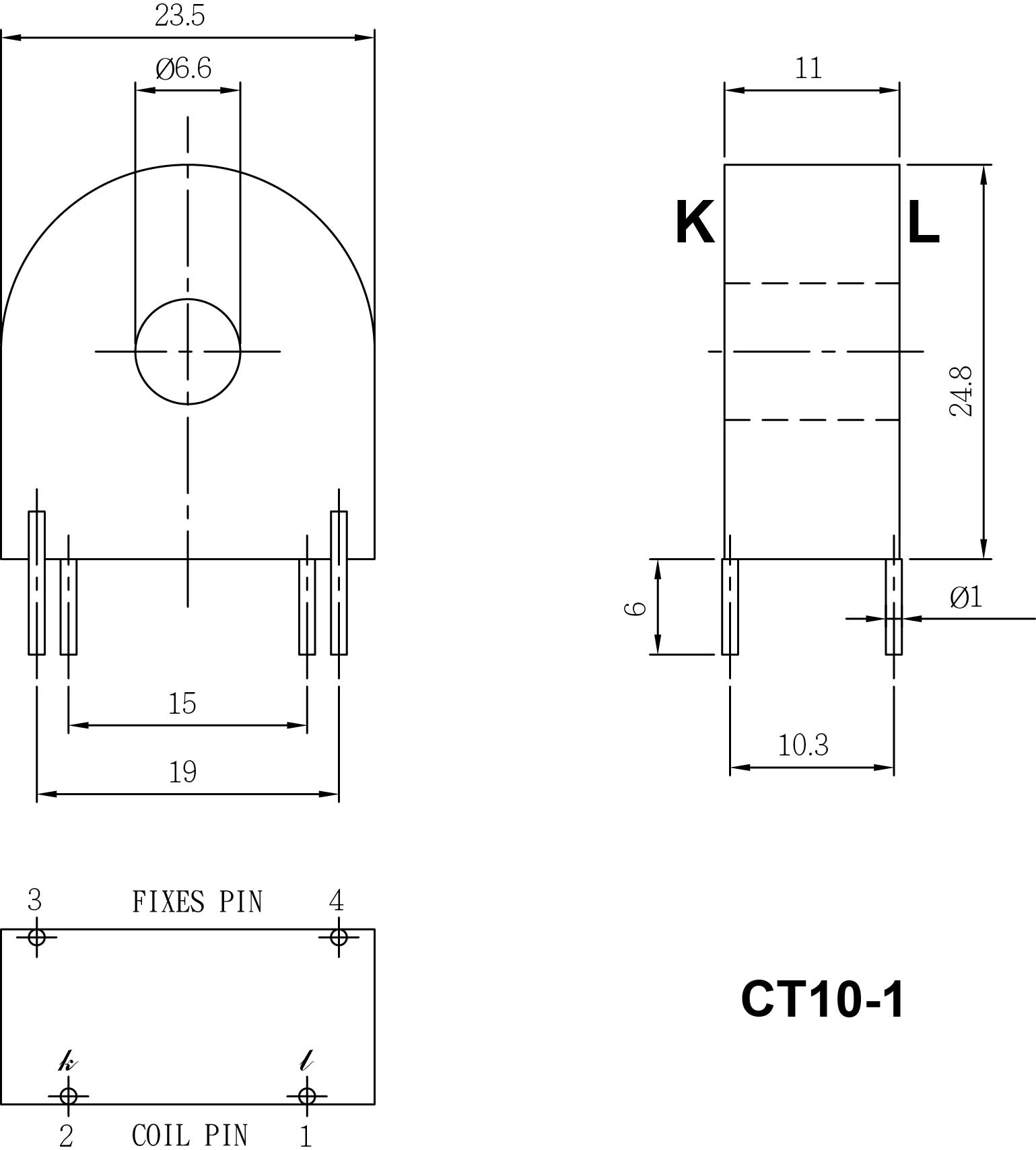

CT10-1 |
5A/2mA |
5 |
2 |
±0.2% |
|

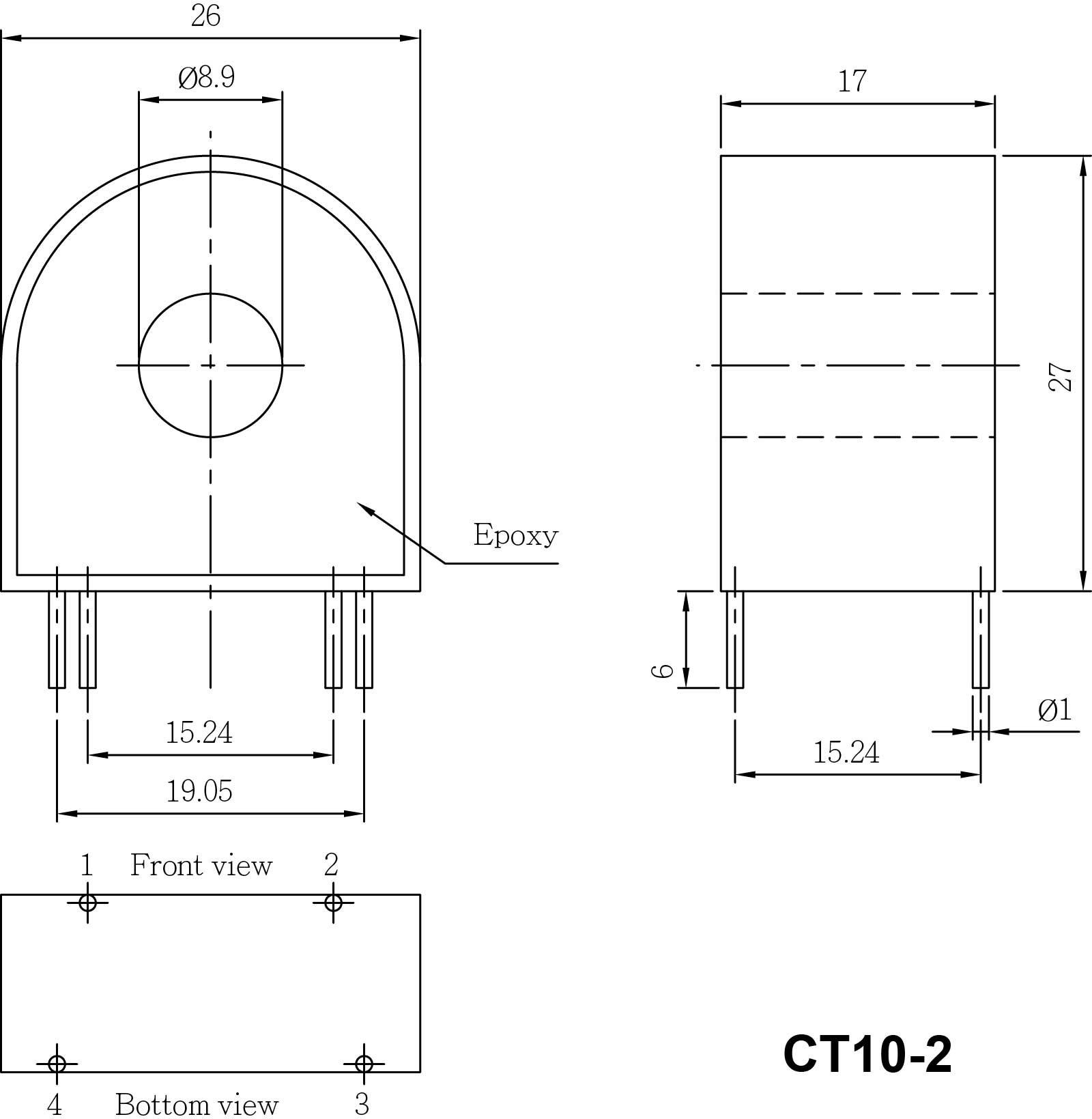

CT10-2 |
20A/25mA |
20 |
25 |
±0.2% |
|
40A/16mA |
40 |
16 |
±0.2% |
