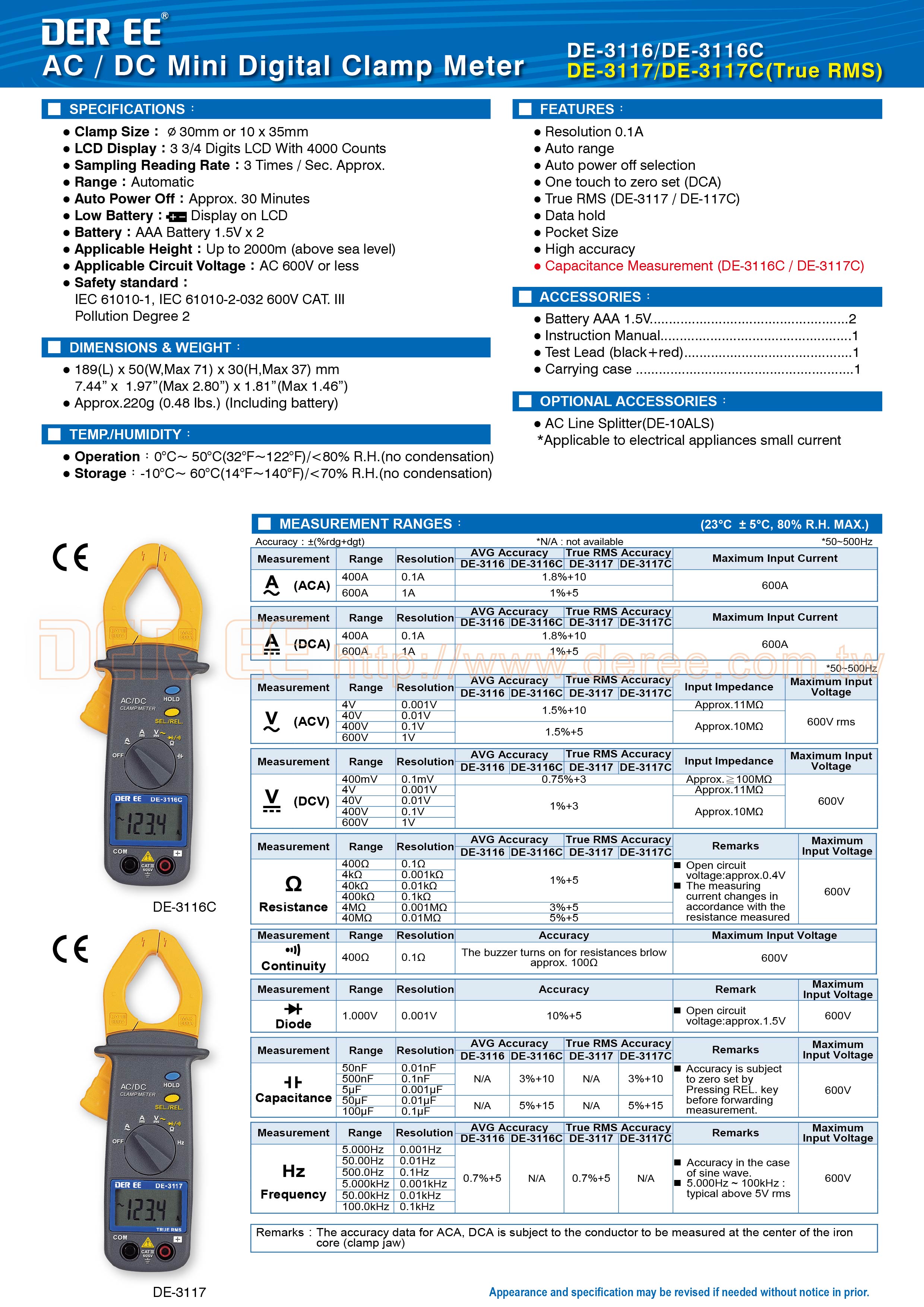

DE-3116 Medidor de pinza de CA/CC de bolsillo
Max. 600A; Clamp Size ∅30mm
Data hold
Auto range
4000 counts
- Measurement Functions：DCV, ACV, DCA, ACA, Resistance, Diode, Buzzer, Frequency
- Clamp Size：φ30mm or 10x35mm
- LCD Display：3 3/4 Digits LCD With 4000 Counts
- Applicable Circuit Voltage：AC 600V or less
- Sampling Reading Rate：3 Times/ Sec. Approx.
- Range：Automatic
- Applicable Height：Up to 2000m (above sea level)
- Auto Power Off：Approx. 30 Minutes
-
Low Battery：
Display on LCD
- Battery：AA A Battery 1.5V x2
- Safety standard：IEC 61010-1 , IEC 61010-2-032 600V CAT III Pollution Degree 2
Measurement Ranges：
23°C ±5°C, 80% R.H. MAX) Accuracy：±(%rdg+dgt)
|
Measurement |
Range |
Resolution |
AVG Accuracy |
Input Impedance |
Maximum Input Measurement |
Remarks |
|
|
DE-3116 |
DE-3116C |
||||||
|
(ACA) |
400A |
0.1A |
1.8%+10 |
── |
600A |
|
|
|
600A |
1A |
1%+5 |
|||||
|
|
400A |
0.1A |
1.8%+10 |
── |
600A |
|
|
|
600A |
1A |
1%+5 |
|||||
|
|
4V |
0.001mV |
1.5%+10 |
Approx. 11MΩ |
600Vrms |
|
|
|
40V |
0.01V |
Approx. 10MΩ |
|||||
|
400V |
0.1V |
1.5%+5 |
|||||
|
600V |
1V |
||||||
|
|
400mV |
0.1V |
0.75%+3 |
Approx. ≥100MΩ |
600V |
|
|
|
4V |
0.001V |
1%+3 |
Approx. 11MΩ |
||||
|
40V |
0.01V |
Approx. 10 MΩ |
|||||
|
400V |
0.1V |
||||||
|
600V |
1V |
||||||
|
|
400Ω |
0.1Ω |
1%+5 |
── |
600V |
*Open circuit voltage:approx.0.4V *The measuring current changes in accordance with the resistance measured |
|
|
4kΩ |
0.001kΩ |
||||||
|
40kΩ |
0.01kΩ |
||||||
|
400kΩ |
0.1kΩ |
||||||
|
4MΩ |
0.001MΩ |
3%+5 |
|||||
|
40MΩ |
0.01MΩ |
5%+5 |
|||||
|
|
400Ω |
0.1Ω |
|
── |
600V |
The buzzer turns on for resistances below approx.100Ω |
|
|
|
1.000V |
0.001V |
10%+5 |
── |
600V |
Open voltage：approx. 1.5V |
|
|
(Capacitance) |
50nF |
0.01nF |
── |
3%+10 |
── |
600V |
Accuracy is subject to zero set by Pressing REL. key before forwarding measurement. |
|
500nF |
0.1nF |
||||||
|
5uF |
0.001uF |
||||||
|
50uF |
0.01uF |
5%+15 |
|||||
|
100uF |
0.1uF |
||||||
|
Hz |
5.000Hz |
0.001Hz |
0.7%+5 |
|
── |
600V |
*Accuracy in the case of sine wave. *5.000Hz~100kHz:typical above 5V rms |
|
50.00Hz |
0.01Hz |
||||||
|
500.0Hz |
0.1Hz |
||||||
|
5.000kHz |
0.001kHz |
||||||
|
50.00kHZ |
0.01kHz |
||||||
|
100.0kHz |
0.1kHz |
||||||
※Remarks：The accuracy data for ACA,DCA is subject to the conductor to be measured at the center of the iron core (clamp jaw)
Temp./Humidity :
- Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
- Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension& Weight :
- 189(L)x50(W,Max71)x30(H,Max47)mm
- Approx.220g (Including battery)
Accessories :
- Battery AAA 1.5V x2
- Instruction Manual x1
- Test Leads (red+black) x1
- Carrying case x1
Optional Accessories：
-
AC Line
Splitter(DE-10ALS)
*Applicable to electrical appliances small current
- Auto Range
- Auto Power Off
- One touch to zero set (DCA)
- Data Hold
- Resolution 0.1A
- Pocket Size
- High Accuracy
- Frequency Measurement
